4:1 High Hardness Epoxy Resin for Composite Material
Model: 6992AB Mixing Ratio: 4:1 by weight
6992AB is a 4:1 high hardness composite epoxy resin designed for fiberglass laminating, carbon fiber laminating, LED potting, mold filling and selected craft applications. The formula focuses on firm cured strength where reinforced structures or filled parts need higher hardness after curing. Its mixing ratio supports stable processing for composite layers and rigid encapsulation work. Good adhesion helps resin connect with fiber surfaces, mold cavities and coated parts. This product suits applications that require stronger cured structure, clean filling behavior and dependable hardness across composite and potting use.
Inquire
TDS
Epoxy Resin for High-Hardness Surface Protection on Composites

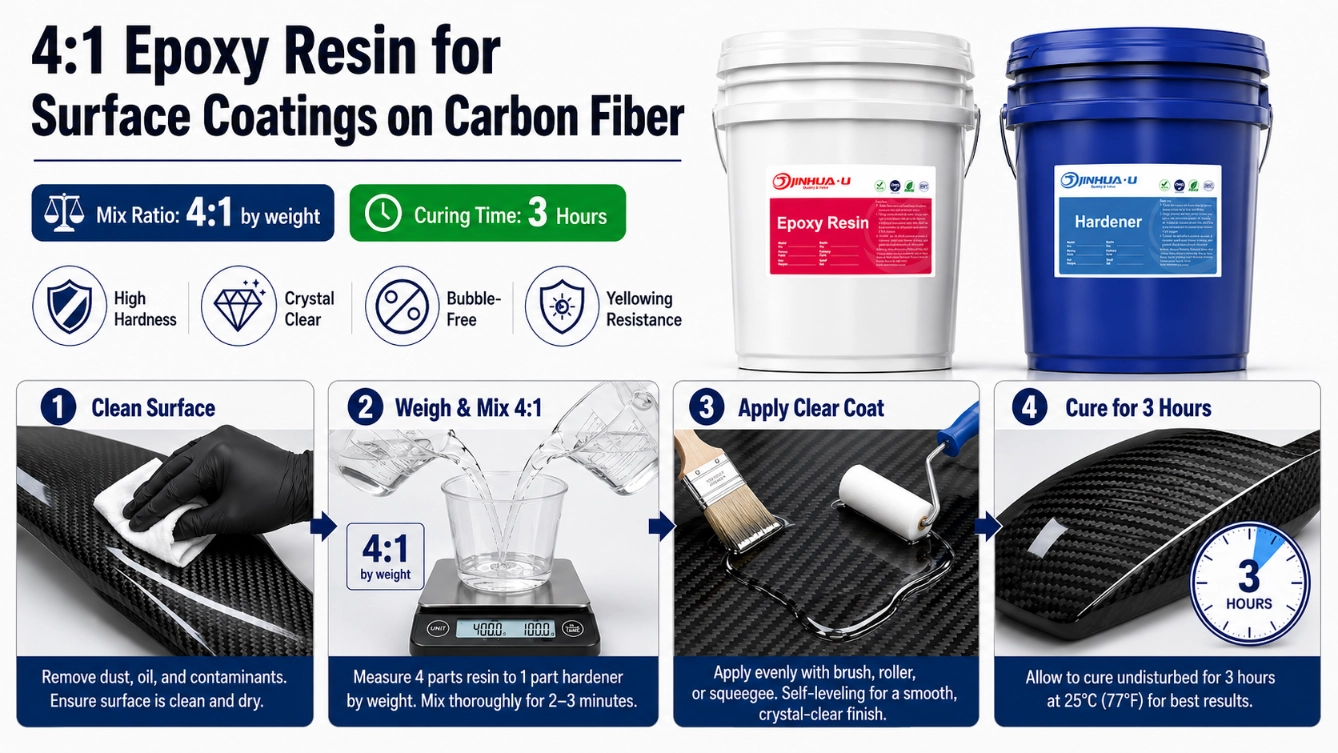

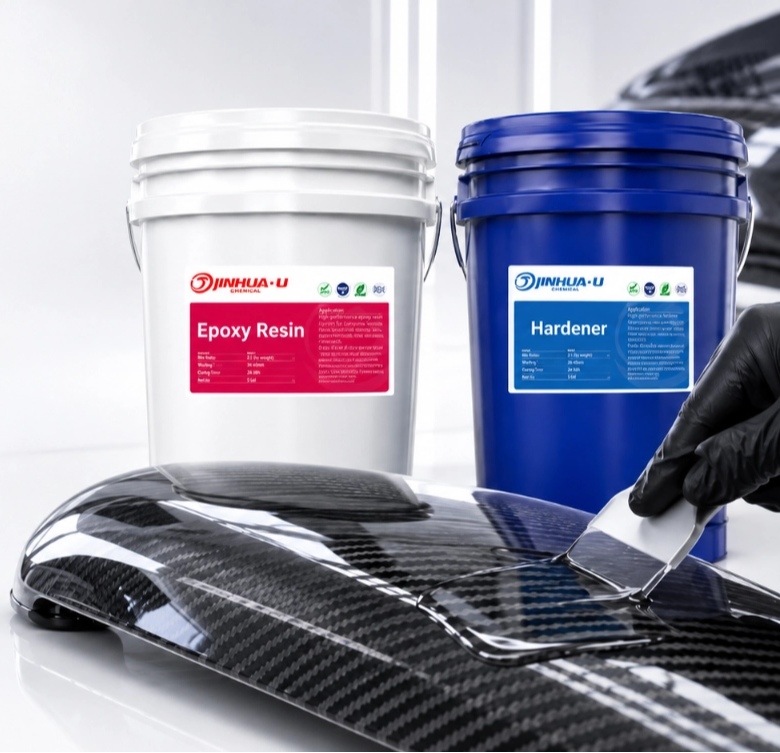

JinHua's 4:1 epoxy resin is specially developed for creating surface coating layers on composite materials. Featuring high hardness, high transparency, bubble-free performance, and yellowing resistance, it is highly suitable for applying protective surface coatings on carbon fiber automotive parts. Thanks to its high hardness and wear resistance, this resin is widely favored by users.
Surface Coating Resin for Multiple Application Scenarios
This epoxy resin features high hardness, high transparency, and fast curing — making it highly suitable for creating protective coatings on various composite surfaces. At the same time, this resin can also be widely used in fiberglass lamination, carbon fiber lamination, crafts, LED potting, mold filling, and more.
Caution
1. The operating environment should be ventilate and should keep away from fire. Closely sealed after use.
2. Avoid eye contact, in case of contact, wash with plenty of water and get medical attention immediately.
3. If contact skin, wrap with clean cloth or paper, and wash it with water and soap.
4. Keep away from children.
5. Please take a trial before application to avoid usage mistake.
Storage And Shelf Life
1. Store at the temperature of 25°C or cool and dry place. Avoid from sunlight, high temperature or high humidity environment.
2. Use up as soon as possible when opened. It is strictly forbidden to expose to the air for a long time after it is opened to avoid affecting the quality of the products. The shelf life is 12 months in the room temperature of 25°C.
Package
20KG per carton,standard packing is 5kgs per bottle, and 20kgs per set. Or you can choose any kind of bottle as below:
Specifications
| Item | Part A | Part B |
| Color | Transparent | Transparent |
| Mixing ratio | A:B=4:1(weight ratio) | |
| Viscosity(25℃) | 800~2500CPS | MAX 100CPS |
| Curing time(25℃) | 25℃×3H or 55℃×15min (2 g) | |
| Pot life | 10mins | |
| Gravity | 1.15 | 0.96 |
| Hardness(Shore D) | 92 | |
| Shelf life | 1 year | 1 year |
FAQ
-
What is the main difference between this model and the normal model for composite application?
-
This model is low viscosity, and long pot life
